MVC Series
MVC600-4000
  • Feature

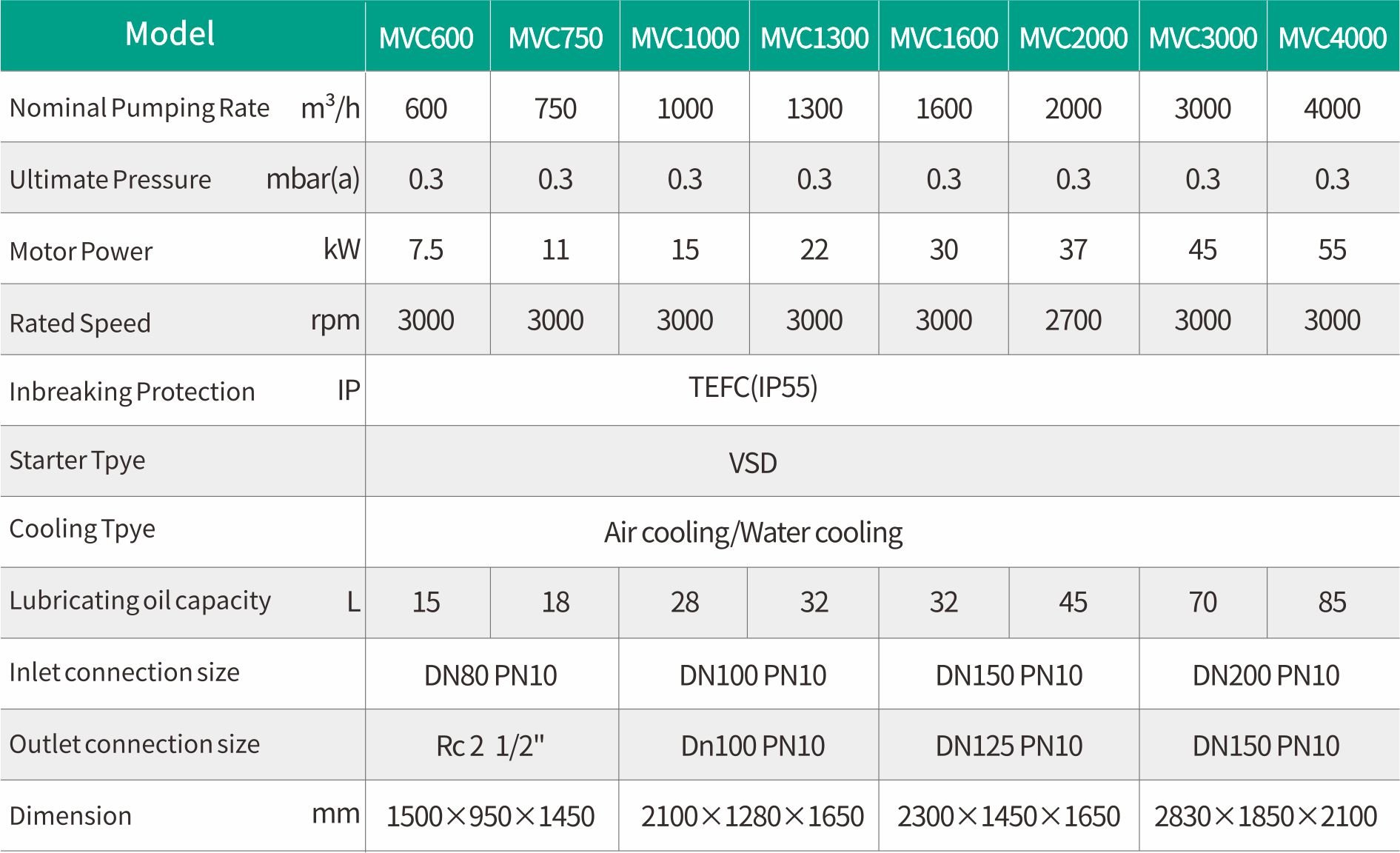

  • Parameters
  • Optional
  • Download

The Unit Feature

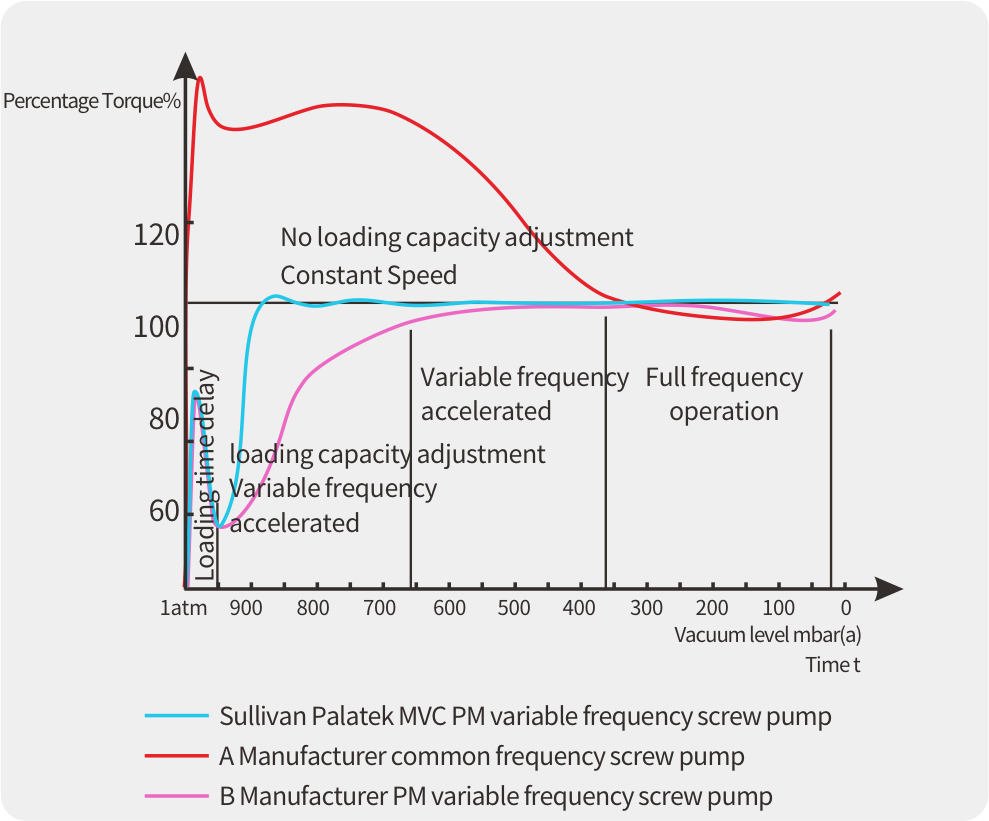

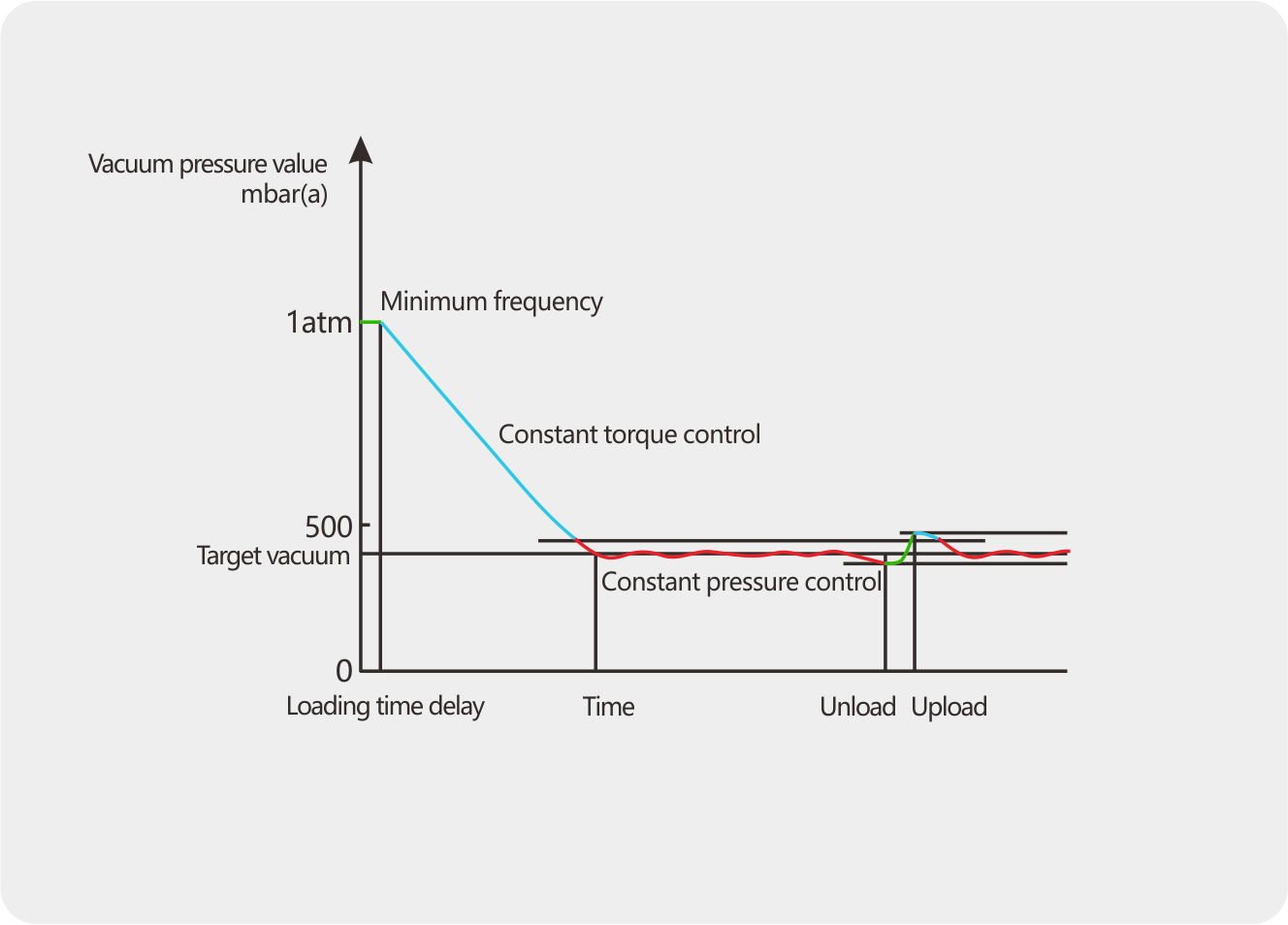

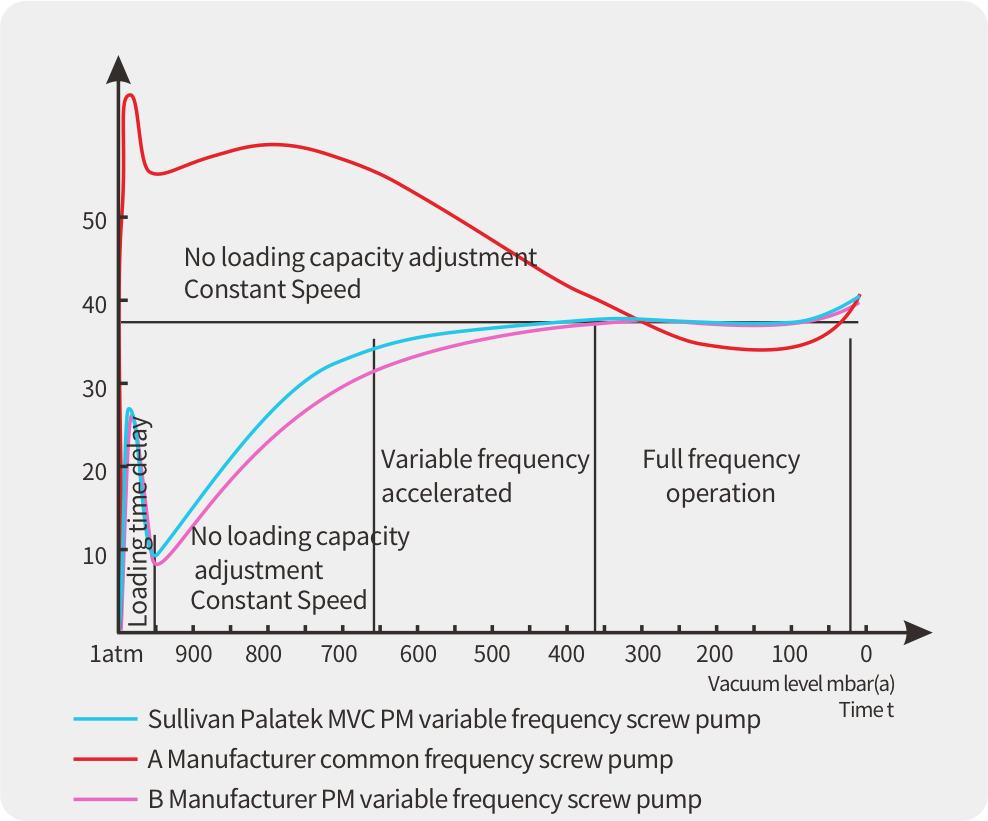

* Unique constant torque control makes the output torque of the unit stable, and guarantees the machine life.

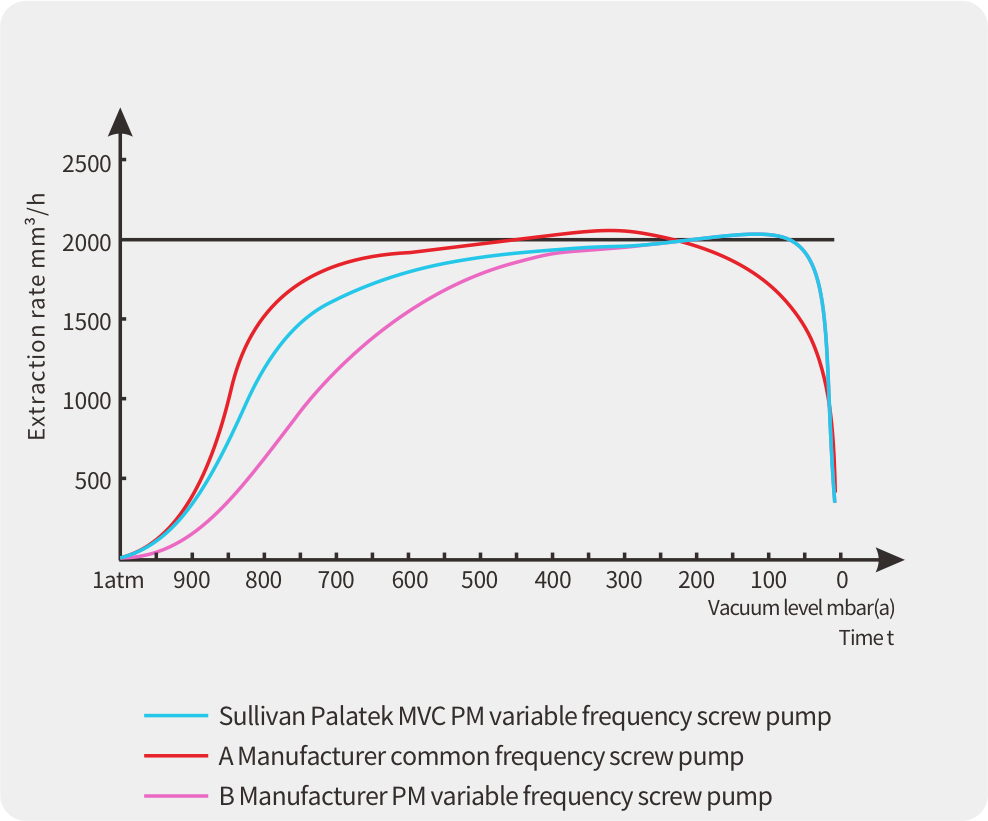

* Sullivan-Palatek vacuum pump screw air end, low load and higher pumping rate
* PM frequency conversion synchronous motor, ultra high energy efficiency.






Main Screw Rotor
* Sullivan-Palatek screw rotor imported from the USA, depedable and durable.
* Fifth generation N-profile new line technology, high efficiency, extraordinary performance.
* Special vacuum pump cavity design, smaller load, less energy consumption.




Intelligent Intake Valve and Control System
* The functions of power off and automatic unloading check prevent oil or gas from entering the user system.

* Intelligent PLC control system, for setting, recording, and monitoring the operation parameter; for longer service life.



Parallel Dual Air/Oil Separator Tanks

* The unique designed oil return system ensures that the air/oil separator core is not overloaded and maintains durable.
* Exhaust oil content less than 3PPM under the condition of full load operation.


The Sullivan-Palatek's Intenet of Things System
* Monitoring the all equipments of vacuum sites
* Analyze and predict the untis operating condition, and the efficiency of the equipments.
* The USA's level the for the data security, and the datas can be store in the choosed service only.

Brochure-MVC Series v20231214.pdf
8.3MB
Download
