Overall Performance
* The series is developed to be reliable and durable.
* The structure conforms to the physical design and protects the unit from high temperature, vibration, or other conditions that may cause damage to it.
* PM variable frequency synchronous motor boosts efficiency and saves more energy.
* Stable operating pressure, its fluctuation can be accurately controlled within 0.01Mpa.
Sullivan-Palatek Screw Airend
* Imported from the USA, with 5-year warranty.
* New Sullivan-Palatek Air End, more accurate, durable, and efficient.
* SKF B-10 bearings imported from Germany, with a designed service life of 100,000+ hours.
* Heavy-duty and thickened airend housing ensures low noise, low vibration, and longer operating life.
PM(Permanent Magnet) Motor
* IE4/IE5, with superior efficiency and excellent energy saving performance.
* The unit is designed to ensure the durability of the PM motor.
- Embedded permanent-magnet structure improves the motor's shock resistance and prevents the PM motor from losing magnetism due to long-term vibration.
- Adopt IV-grade magnetic steel material which can withstand temperature up to 180℃ so as to prevent the PM motor from losing magnetism due to high temperature.
Carbon reduction and energy saving
* Eliminates energy waste from loading or unloading of standard industrial frequency units.
* Saves energy more than 6% with high efficiency IE4 PM frequency conversion motor.

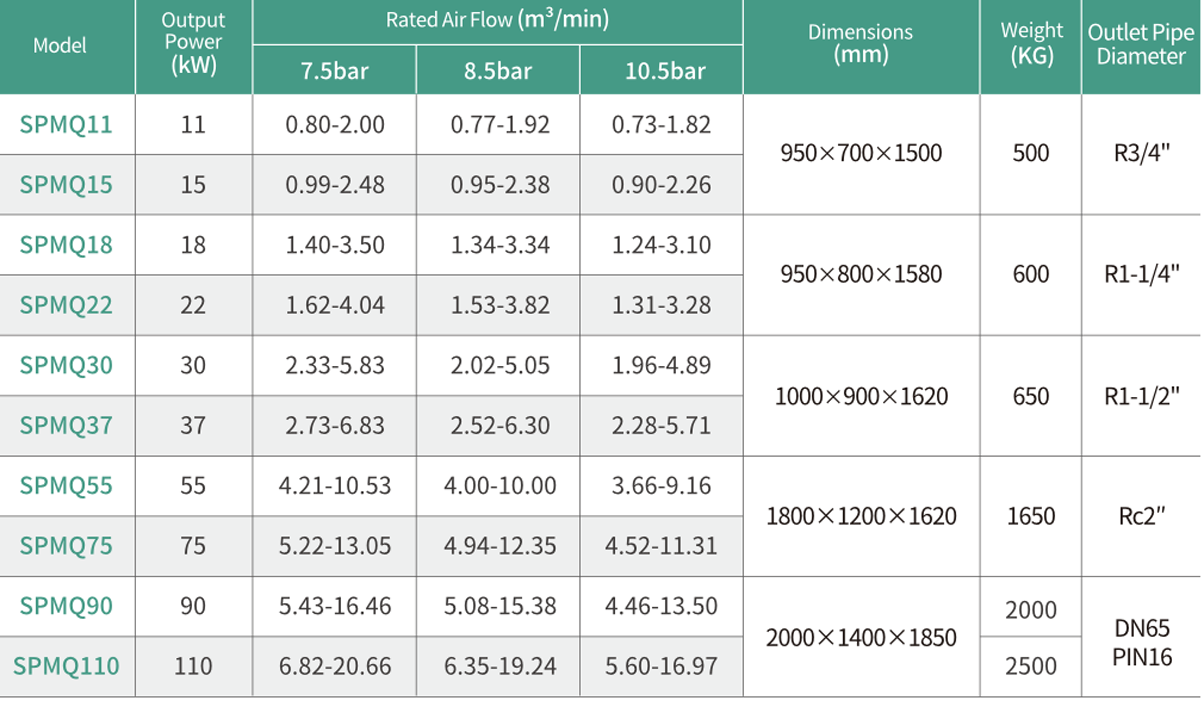

SPMQ

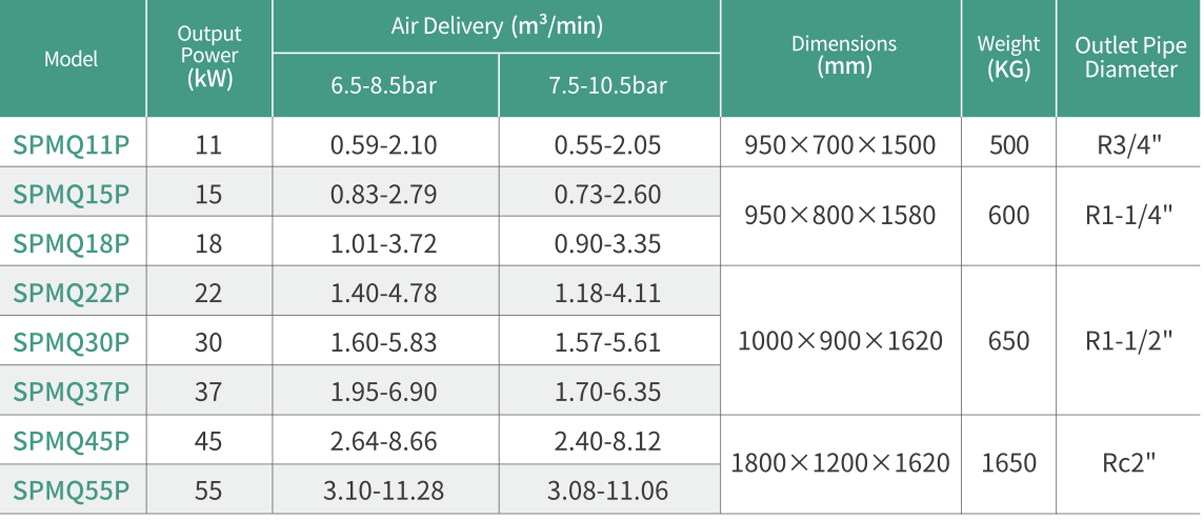

SPMQ Pro
Integrated Heat Recovery System
* The built-in special structure design of the heat transfer system ensures good operation by effectively preventing limescale in the tubes during the heat exchange process.
* With customized and modular design, the system is small but helps reduce energy loss and recovery almost 80% of the heat generated.
* Compatible with Sullivan-Palatek Asia’s external intelligent heat recovery control equipment or the existing cooling tower system.
Sullivan-Palatek IOT(internet of Things) System
* Real-time monitoring of all equipment and instruments in the site.
* Suitable for equipment of different brands,not limited to compressors.
* Analyze and forecast the unit condition,and check the energy efficiency ratio of the site.
* USA Data security level. We consider data security as priority. Data is kept on the user side only.
PLC Intelligent Control System
* Microcomputer control system for intelligent and efficient operation.
* Centralized control: to remote monitor and control multi machines (includes different brands and different equipment).
* Multi languages in operating system.
